Site Measurement Tips

Site Measurement Tips: Best Practices for Accurate Construction Measurement and Error-Free Projects

Construction is a precision-driven industry where even a small measurement error can result in costly rework, material wastage, project delays, and disputes between stakeholders. Whether you're a site engineer, quantity surveyor, contractor, or civil engineering student, mastering proper site measurement techniques is essential for delivering quality projects.

This guide covers 10 essential site measurement tips that every construction professional should follow to ensure accurate measurements, reliable documentation, and smooth project execution.

Why Accurate Site Measurement Matters

Site measurement is the process of determining the actual dimensions and quantities of completed or ongoing construction work. These measurements are used for:

Quantity estimation
Contractor billing
Material planning
Quality control
Project monitoring
Payment certification
Final project documentation

Accurate measurements help minimize errors while ensuring the project remains within budget and complies with design specifications.

1. Always Measure from a Fixed Reference Point

Every measurement should begin from an established reference point such as:

Benchmark (BM)
Grid Line
Control Point
Column Centerline

Using fixed reference points ensures consistency throughout the project and prevents cumulative measurement errors.

Best Practice

Verify benchmark elevations before starting.
Never use temporary objects as reference points.
Mark reference points clearly for future use.

Why it matters: A wrong starting point can shift the entire layout and lead to expensive corrections.

2. Use Calibrated Measuring Tools

Measurement accuracy depends heavily on the condition of your equipment.

Common measuring tools include:

Steel Tape
Laser Distance Meter
Total Station
Auto Level
Digital Level
GPS Equipment

Tips

Check calibration regularly.
Replace damaged tapes.
Keep instruments clean and dry.
Perform daily equipment checks before site work.

Remember: Even the best engineer cannot produce accurate results with inaccurate tools.

3. Cross-Check Every Dimension Before Recording

Never rely on a single measurement.

Always:

Measure twice
Verify diagonals
Compare dimensions with drawings
Ask another engineer to verify important measurements

Cross-checking helps identify:

Human errors
Reading mistakes
Recording mistakes
Instrument errors

A few extra minutes spent verifying can save days of costly rework.

4. Measure Using the Correct Units

Construction projects often involve different unit systems depending on the client or country.

Common units include:

Millimeters (mm)
Centimeters (cm)
Meters (m)
Feet (ft)

Best Practices

Follow project specifications.
Never mix metric and imperial units.
Clearly mention units in reports.
Convert units carefully whenever necessary.

Incorrect unit conversion is one of the most common causes of construction errors.

5. Record Measurements Immediately

Measurements should always be entered into the Measurement Book (MB) or digital recording system immediately after taking them.

A proper record should include:

Date
Location
Item description
Dimensions
Quantity
Engineer's signature

Delaying documentation increases the chance of forgetting important details or recording incorrect values.

Golden Rule: Measure → Verify → Record

6. Verify Drawings with Actual Site Conditions

Construction drawings provide the design intent, but site conditions may differ due to:

Design revisions
Field modifications
Existing structures
Ground conditions
Construction tolerances

Before taking measurements:

Compare drawings with actual work.
Check latest revisions.
Confirm dimensions on-site.
Inform supervisors if discrepancies exist.

Never assume drawings perfectly match field conditions.

7. Measure Completed Work Only After Quality Approval

Measurements for billing or payment should only be taken after the work has passed quality inspection.

Examples include:

Concrete strength approval
Reinforcement inspection
Masonry alignment check
Finishing quality verification

Measuring incomplete or rejected work can create payment disputes and documentation problems.

8. Deduct Openings, Voids, and Exclusions

Accurate quantity calculations require proper deductions according to project specifications or relevant standards.

Examples:

Openings

Doors
Windows
Ventilation shafts

Voids

Service ducts
Lift wells
Pipe openings

Exclusions

Areas excluded by contract
Temporary works
Unmeasured components

Always refer to contract conditions and applicable measurement standards before making deductions.

9. Take Photographs as Supporting Evidence

Photographs provide valuable documentation for measurements and progress tracking.

Benefits include:

Proof of completed work
Billing support
Quality records
Dispute resolution
Client reporting
Progress monitoring

Good construction photographs should include:

Date
Location
Scale reference
Clear visibility
Multiple angles

Digital records can become invaluable during audits or claims.

10. Joint Verification Prevents Future Disputes

Measurements should ideally be verified jointly by:

Contractor
Site Engineer
Consultant
Client Representative

Joint verification creates transparency and minimizes disagreements during payment certification.

Advantages include:

Faster approvals
Fewer disputes
Better communication
Accurate billing
Improved trust among stakeholders

Documentation signed by all parties serves as strong evidence if disagreements arise later.

Quick Measurement Checklist

Before measuring, ask yourself:

✅ Is my instrument calibrated?

✅ Am I using the correct benchmark?

✅ Have I checked the latest drawings?

✅ Am I using the correct unit?

✅ Did I verify the dimensions?

✅ Have I recorded the measurement?

✅ Did I take photographs?

✅ Has the work passed quality inspection?

✅ Have all deductions been considered?

✅ Has the measurement been jointly verified?

Common Mistakes to Avoid

Even experienced professionals can make avoidable mistakes. Watch out for:

Measuring from the wrong reference point
Using damaged measuring tools
Recording values later from memory
Ignoring drawing revisions
Mixing units
Missing deductions
Measuring before work completion
Failing to document photographic evidence
Skipping cross-checks
Not obtaining joint verification

Avoiding these mistakes can significantly improve project accuracy and efficiency.

Professional Tips for Better Site Measurement

Plan your measurements before visiting the site.
Carry extra batteries for digital instruments.
Keep your Measurement Book organized.
Review contract specifications regularly.
Maintain calibrated equipment.
Use digital tools where appropriate.
Develop a habit of double-checking every critical measurement.
Maintain clear communication with the project team.

Final Thoughts

Accurate site measurement is much more than recording dimensions—it's a cornerstone of quality construction management. By following these 10 essential tips, construction professionals can reduce errors, improve project efficiency, ensure fair payments, and build trust among all project stakeholders.

Remember, precision today prevents costly problems tomorrow. A disciplined approach to measurement not only safeguards project quality but also enhances your reputation as a reliable construction professional.

About Gaurav N Civil Engineering Services

At Gaurav N Civil Engineering Services, we are committed to sharing practical construction knowledge, engineering best practices, and professional insights that help engineers, contractors, and students build smarter. Follow our blog for expert articles on site engineering, quantity surveying, project management, quality control, estimation, and construction technology.

Keywords (SEO): Site measurement tips, construction measurement, measurement book, civil engineering, quantity surveying, site engineer, construction quality control, benchmark, total station, laser distance meter, measurement best practices, construction documentation.

Wednesday, March 11, 2026

"Why Are Many Projects Delayed in Nepal?"

नेपालमा धेरै परियोजना ढिलो हुनुको कारण

A Civil Engineer’s Perspective on Project Delays in Nepal

Infrastructure development is the backbone of a nation’s economic progress. In Nepal, significant investments have been made in roads, bridges, hydropower projects, irrigation systems, and urban infrastructure. However, despite these efforts, many projects face serious delays, leading to increased costs, inefficiency, and public frustration.

As a civil engineer working in construction and project management, I believe that while there are many contributing factors, one of the most overlooked yet critical technical reasons is the lack of proper time scheduling and the failure to analyse Optimistic and Pessimistic time during project planning.

The Core Issue: Lack of Scientific Scheduling

In professional project management, proper scheduling is not just about estimating how long a project will take. It requires systematic analysis using tools such as PERT (Program Evaluation and Review Technique) and CPM (Critical Path Method).

A realistic schedule considers three key parameters:

Optimistic Time (O): The minimum time required if everything proceeds perfectly.

Most Likely Time (M): The expected time under normal working conditions.

Pessimistic Time (P): The maximum time required if unexpected problems arise.

Using these three estimates, engineers calculate a realistic expected duration using the PERT formula:

TE = (O + 4M + P) / 6

Unfortunately, in many projects in Nepal, schedules are often prepared based on a single rough estimate, without analysing uncertainties. When challenges such as weather conditions, supply chain disruptions, labour shortages, or design adjustments occur, the project timeline becomes unrealistic, resulting in unavoidable delays.

In simple terms:

“नेपालमा धेरै परियोजना ढिलो हुनुको मुख्य कारण Time Scheduling नगर्नु र Optimistic तथा Pessimistic Time को सही विश्लेषण नगर्नु हो।”

Other Contributing Factors

While scheduling is a major technical issue, several other systemic factors also contribute to delays:

1. Weak Project Planning

Many projects start without detailed feasibility studies, soil investigations, or comprehensive planning. This often leads to design changes during construction.

2. Bureaucratic and Administrative Delays

Slow approval processes, delayed budget releases, and lengthy administrative procedures frequently interrupt project progress.

3. Financial Constraints

Delayed payments to contractors and suppliers often slow down construction activities and reduce productivity.

4. Frequent Design Modifications

Starting construction without finalizing the design results in revisions and additional approvals later.

5. Political and Institutional Interference

Policy changes, political transitions, and local influence can disrupt project timelines.

6. Skilled Manpower Shortage

Although Nepal has many workers in the construction sector, there is still a shortage of highly skilled technical professionals and project managers.

7. Challenging Geography and Weather

Nepal’s mountainous terrain, remote project locations, and monsoon season create additional logistical challenges.

8. Weak Monitoring and Coordination

Poor communication and coordination between clients, consultants, contractors, and government agencies often slow down decision-making.

The Way Forward

To improve project performance in Nepal, we must strengthen project management practices and adopt modern scheduling techniques. Proper use of tools such as PERT, CPM, digital project management systems, and data-driven planning can significantly reduce delays.

At the same time, improving coordination among stakeholders, ensuring timely financial flow, and enhancing technical capacity will help ensure projects are completed on schedule.

Nepal has tremendous potential for infrastructure growth. With better planning, professional management, and technical discipline, we can transform the way construction projects are executed and deliver development more efficiently.

As civil engineers, it is our responsibility not only to build structures, but also to build systems that ensure projects are completed on time, within budget, and with the highest professional standards.

Wednesday, January 28, 2026

Concrete Tests and Practical Engineering Knowledge

Concrete Tests and Practical Engineering Knowledge – A Complete Guide for Civil Engineers

Concrete is the backbone of modern construction. The strength, durability, and safety of any structure largely depend on the quality of concrete used. For civil engineers, site supervisors, and construction professionals, understanding concrete tests and practical engineering knowledge is essential to ensure good workmanship and long-lasting structures.

This article explains the most important concrete tests, their purposes, procedures, and practical site knowledge that every engineer must know.

Why Concrete Testing is Important

Concrete testing helps to:

Ensure required strength is achieved
Maintain quality control on site
Detect defects and weaknesses
Improve durability and performance
Avoid future structural failures

Testing should be performed at different stages: before concreting, during concreting, and after hardening.

Types of Concrete Tests

Concrete tests are broadly divided into:

Tests on Fresh Concrete
Tests on Hardened Concrete
Non-Destructive Tests (NDT)

Slump Test (Workability Test)

The slump test is the most common field test used to check the workability and consistency of fresh concrete.

Purpose

To measure the ease with which concrete can be mixed, placed, compacted, and finished.

Equipment

Slump cone
Tamping rod
Base plate

Procedure

Fill the cone in three layers.
Each layer is compacted with 25 strokes.
Lift the cone vertically.
Measure the drop in height (slump).

Recommended Slump Values

Footing: 50–75 mm
Beams and Columns: 75–100 mm
Pumped Concrete: 100–150 mm

Types of Slump

True slump
Shear slump
Collapse slump

Collapse slump indicates excessive water and poor-quality concrete.

Compressive Strength Test (Cube Test)

This test determines the strength of hardened concrete.

Purpose

To verify that concrete has achieved the required strength.

Specimen Size

150 mm × 150 mm × 150 mm cube

Testing Ages

7 days – Early strength
28 days – Final strength

Acceptance Criteria

The 28-day compressive strength should be equal to or greater than the grade of concrete.
Example: M25 ≥ 25 N/mm².

Site Practice

At least three cubes should be cast for every 50 m³ of concrete or for each day of concreting.

Rebound Hammer Test

This is a non-destructive test used to estimate surface hardness and approximate compressive strength.

Purpose

Quick quality assessment
Checking existing structures

Results are indicative and should be confirmed by core testing when required.

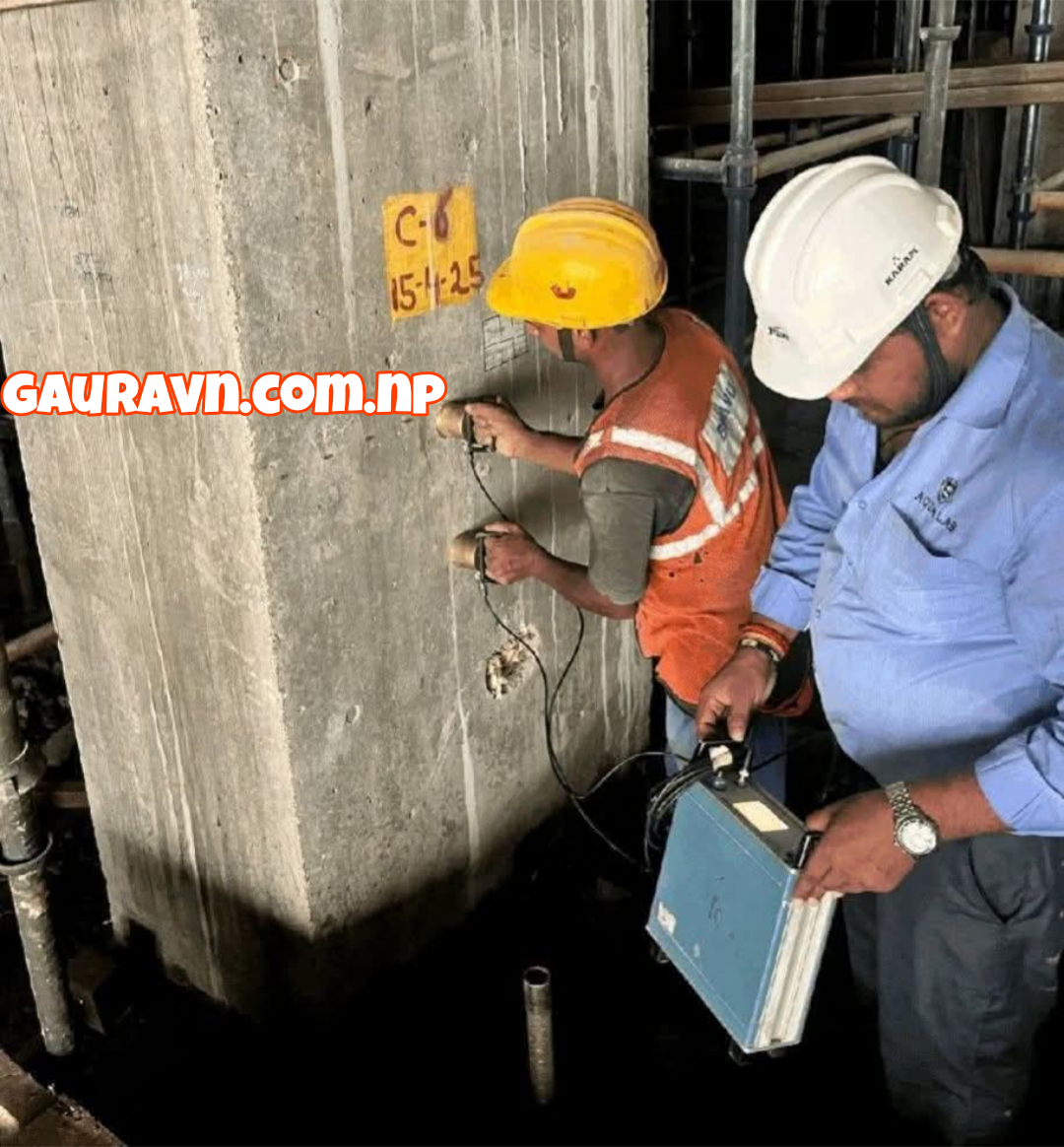

Ultrasonic Pulse Velocity (UPV) Test

This test measures the velocity of ultrasonic waves through concrete.

Purpose

Detect internal cracks and voids
Check uniformity and quality

Interpretation

Above 4.5 km/s – Excellent
3.5 to 4.5 km/s – Good
3.0 to 3.5 km/s – Medium
Below 3.0 km/s – Poor

Core Cutting Test

Concrete cores are extracted from the structure and tested in a laboratory.

Purpose

To determine actual in-situ compressive strength.

Used when cube results are unsatisfactory or during structural assessment.

Water Absorption Test

This test indicates the durability of concrete.

Good quality concrete generally has water absorption less than 5%.

Practical Engineering Knowledge for Site

Water–Cement Ratio

The water–cement ratio controls concrete strength.

Recommended range: 0.45 to 0.50 for RCC works
Higher water content reduces strength and durability

Never add water to concrete after it reaches site.

Curing of Concrete

Curing maintains moisture for hydration.

Start curing after 24 hours
Minimum curing period: 7 days
Ideal curing period: 14 days

Poor curing can reduce concrete strength by up to 40%.

Prevention of Honeycombing

Use proper vibration
Avoid dry concrete mix
Ensure tight formwork
Place concrete in layers

Reinforcement Cover (Typical Values)

Footing: 50 mm
Column: 40 mm
Beam: 25 mm
Slab: 20 mm

Always use cover blocks.

Concrete Volume Estimation

Dry Volume = Wet Volume × 1.54

For 1 m³ concrete:
Dry volume = 1 × 1.54 = 1.54 m³

Cube Casting on Site

Clean and oil the molds
Fill in three layers
Compact each layer properly
Label cubes with date, grade, and location

Common Site Mistakes

Adding extra water
Insufficient vibration
Early removal of formwork
Poor curing
Using expired cement

Avoiding these mistakes greatly improves concrete quality.

Frequently Asked Interview Questions

What is slump test?
Why cube test is done at 28 days?
What is water–cement ratio?
Minimum curing period for concrete?
Difference between M20 and M25 concrete?

Conclusion

Quality concrete is achieved not only by good materials but also by correct testing, proper execution, and strong site control. Every civil engineer and site supervisor should understand concrete tests and practical engineering knowledge to deliver safe and durable structures.

Thursday, January 15, 2026

Foundation and Its Types in Civil Engineering

Introduction

In civil engineering, the foundation is one of the most critical components of any structure. Whether it is a small residential house, a multi-storey building, a bridge, or a dam, the entire safety and performance of the structure depend heavily on its foundation. A well-designed foundation ensures that the structure remains stable, safe, and durable throughout its service life.

This article explains what a foundation is, its functions, and the different types of foundations used in civil engineering, along with their applications.

What Is a Foundation?

A foundation is the lowest part of a structure that comes in direct contact with the ground. It transfers the loads of the superstructure (such as walls, columns, slabs, and beams) safely to the underlying soil or rock without causing excessive settlement or failure.

In simple words, the foundation acts as a link between the structure and the earth.

Functions of a Foundation

The main functions of a foundation are:

Load Distribution
It safely transfers the structural loads to the soil within its safe bearing capacity.
Structural Stability
It provides stability against sliding, overturning, and uplift forces.
Settlement Control
It minimizes uniform and differential settlement of the structure.
Protection Against Soil Movement
It protects the structure from soil shrinkage, expansion, and frost action.
Durability
A good foundation increases the overall lifespan of the structure.

Factors Affecting Foundation Selection

The choice of foundation depends on several factors, including:

Type and bearing capacity of soil
Magnitude of structural loads
Depth of groundwater table
Type of structure (residential, commercial, industrial)
Environmental and seismic conditions
Economy and construction feasibility

Types of Foundations

Foundations are broadly classified into two main categories:

Shallow Foundations
Deep Foundations

1. Shallow Foundations

Shallow foundations are used when the soil near the ground surface is strong enough to support the structural loads.

(a) Isolated Footing

An isolated footing supports a single column. It is the most common and economical type of foundation.

Features:

Square, rectangular, or circular shape
Used in residential and low-rise buildings
Simple design and construction

(b) Combined Footing

A combined footing supports two or more columns.

Used when:

Columns are close to each other
One column is near a property boundary

Types:

Rectangular combined footing
Trapezoidal combined footing

(c) Strip or Wall Footing

A strip footing is a continuous footing provided under load-bearing walls.

Applications:

Masonry walls
Residential buildings with load-bearing walls

(d) Raft or Mat Foundation

A raft foundation consists of a large concrete slab covering the entire building area.

Advantages:

Reduces differential settlement
Suitable for weak soils
Supports heavy loads

Applications:

Basements
High-rise buildings on soft soil

2. Deep Foundations

Deep foundations are used when strong soil is not available near the surface or when structural loads are very heavy.

(a) Pile Foundation

A pile foundation consists of long, slender columns made of concrete, steel, or timber, driven deep into the ground.

Functions:

Transfer loads to deeper, stronger soil layers
Resist uplift and lateral forces

Types of piles:

End-bearing piles
Friction piles
Under-reamed piles

Applications:

Bridges
High-rise buildings
Marine structures

(b) Pier Foundation

A pier foundation is a cylindrical foundation constructed by excavating the ground and filling it with concrete.

Features:

Larger diameter than piles
Carries heavy loads

Used in:

Bridges
Industrial structures

(c) Caisson Foundation

A caisson foundation is a watertight structure used mainly in underwater construction.

Types of caissons:

Open caisson
Box caisson
Pneumatic caisson

Applications:

Bridge piers in rivers
Harbor and dock structures

Difference Between Shallow and Deep Foundations

Aspect	Shallow Foundation	Deep Foundation
Depth	Small	Large
Soil condition	Strong surface soil	Weak surface soil
Cost	Economical	Expensive
Construction	Simple	Complex
Examples	Footings, raft	Piles, caissons

Conclusion

The foundation is the most vital element of any civil engineering structure. A properly selected and well-designed foundation ensures safety, stability, and long-term performance. Understanding the types of foundations and their applications helps engineers choose the most suitable option based on soil conditions, loads, and site constraints.

A strong structure always begins with a strong foundation.

#CivilEngineering #Foundation #TypesOfFoundation #ShallowFoundation

#DeepFoundation #PileFoundation #RaftFoundation #FoundationEngineering

#CivilEngineeringStudents #Construction #BuildingFoundation

#FoundationDesignInCivilEngineering

Pages

Saturday, July 18, 2026
